Compressed Air Leak Energy Cost Calculator
Introduction: What This Compressed Air Leak Calculator Estimates
Compressed air is often one of the most expensive utilities in a plant because electricity is converted into pressurized air with compressor, dryer, distribution, and control losses along the way. A small open fitting can waste real money when the system runs for thousands of hours per year.

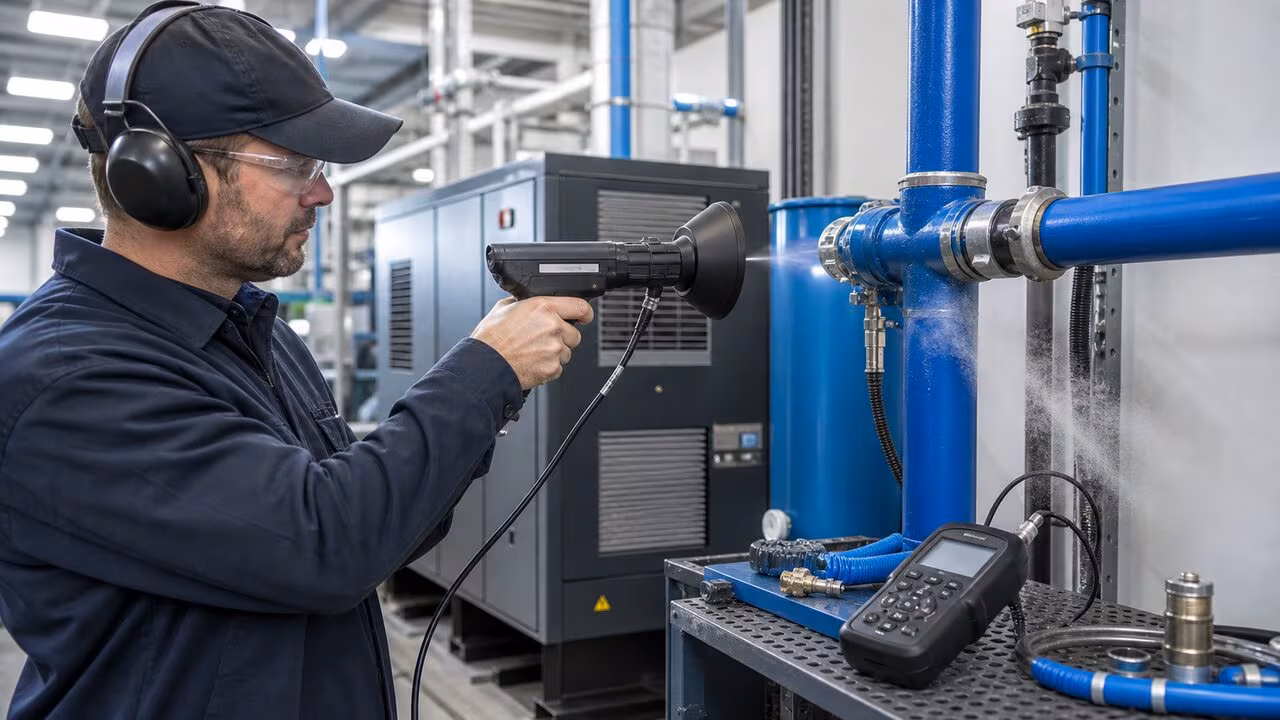

This calculator turns a measured or estimated leak flow into three planning numbers: wasted compressor power, annual wasted energy, and annual electricity cost. If you enter an estimated repair cost, it also shows a simple payback period so maintenance teams can rank leaks found during an ultrasonic survey.
How to Use
- Enter the compressor input power in kW. Use measured demand from a meter when available; nameplate horsepower is only a rough proxy.
- Enter the rated compressor flow in cfm at the pressure where the system normally operates.
- Enter the leak flow in cfm from an ultrasonic detector, leak tag, or estimating chart.
- Enter annual operating hours. Use loaded hours for the compressor or the hours that the leaking header stays pressurized.
- Enter the blended electricity rate in dollars per kWh, including demand and delivery charges if your internal energy accounting includes them.
- Optionally enter the expected repair cost to estimate simple payback.
Run conservative and aggressive cases when leak flow is uncertain. Leak tags are often approximate, and a leak can behave differently when system pressure changes.
Choosing good inputs
Compressor power should represent electrical input, not only motor shaft output. For a fixed-speed unit, use loaded kW if you have it. For a variable-speed system, this simple model is most useful near the operating range where additional cfm increases input kW in a roughly linear way.
Rated flow should match the compressor and pressure range that supplies the leak. If several compressors run together, use the incremental compressor that responds to the leak load rather than the total installed plant capacity.
Leak flow is usually the least certain input. Ultrasonic instruments, bag tests, or calibrated orifice tables can all help, but note the pressure used for the estimate. A leak estimated at 100 psig will not waste the same flow at 80 psig.
Operating hours should reflect pressurized hours. A leak on a header that stays charged all weekend can have a larger annual cost than a leak on a machine drop that is isolated after each shift.
Formulas: how the calculator turns inputs into results
This simplified model assumes compressor electrical power scales roughly with delivered flow near the operating point:
Plain-text formula: leakFraction = leakFlowCfm / ratedCompressorFlowCfm
Plain-text formula: wastedPowerKw = compressorPowerKw * leakFraction
Plain-text formula: annualWastedKwh = wastedPowerKw * operatingHoursPerYear
Plain-text formula: annualCost = annualWastedKwh * electricityRatePerKwh
Plain-text formula: simplePaybackMonths = repairCost / annualCost * 12, when annualCost is greater than zero.
This is an energy estimate, not a full compressor-system audit. Real systems may cycle, unload, stage multiple compressors, trim with a variable-speed drive, leak at different pressures, or use controls that make the relationship less linear.
Worked example (step-by-step)
Worked examples are a fast way to validate that you understand the inputs. For illustration, suppose you enter:
- Compressor power (kW): 50
- Rated compressor flow (cfm): 250
- Leak flow (cfm): 25
- Operating hours per year: 4000
- Electricity rate ($/kWh): 0.12
The leak fraction is 25 / 250 = 0.10. Wasted power is 50 kW * 0.10 = 5 kW. Annual waste is 5 kW * 4000 hours = 20,000 kWh. At $0.12/kWh, the estimated annual cost is $2,400.
After you run the estimate, compare the result panel to your expectations. If the output is wildly different, check whether compressor power is in kW rather than horsepower, whether the leak flow was entered in cfm rather than l/s, and whether operating hours are annual rather than weekly.
Comparison table: sensitivity to a key input
The table below changes the leak fraction while keeping a 50 kW compressor, 4000 annual hours, and $0.12/kWh electricity rate constant.
| Scenario | Leak fraction | Annual wasted energy | Annual cost | Interpretation |
|---|---|---|---|---|
| Small leak | 5% | 10,000 kWh | $1,200 | Repair may still pay back quickly on continuous-duty systems. |
| Baseline | 10% | 20,000 kWh | $2,400 | This matches the worked example above. |
| Large leak | 20% | 40,000 kWh | $4,800 | Large leak loads can affect pressure stability and compressor staging. |
Use the calculator's actual result panel with conservative, baseline, and aggressive assumptions to see how much the outcome moves when a key input changes.
How to interpret the result
The results panel separates wasted power, annual kWh, annual cost, and leak load as a share of rated compressor flow. A leak fraction above 10% is usually worth quick attention because it can affect pressure stability, compressor staging, and dryer load in addition to electricity cost.
For repair planning, sort leaks by annual cost and payback, then group repairs by area or shutdown window. A small leak with easy access may be repaired immediately, while a larger leak behind guarded equipment may need to wait for a planned outage.
Limitations and assumptions
No screening calculator can capture every real-world detail. This tool aims for a practical balance: enough realism to rank leaks and justify repairs, but not so much complexity that it becomes difficult to use during a plant survey. Keep these limitations in mind:
- Part-load controls: inlet modulation, load/unload storage, sequencing, and variable-speed controls can change the kW impact of each leaked cfm.
- Pressure dependence: leak flow changes with pressure. Recheck the estimate if the leak was measured at a different pressure than normal production.
- Air treatment load: dryers, filters, drains, and cooling equipment can add energy or maintenance cost that this simple electricity estimate does not include.
- Repair practicality: some leaks require lockout, shutdown coordination, replacement fittings, or piping changes that make payback less immediate than the energy number suggests.
Use the output as a screening estimate for energy management and maintenance prioritization. Confirm high-value leaks with plant measurements, compressor trend data, or a full compressor-system audit before claiming savings in a formal energy project.
Frequently Asked Questions
How should I estimate leak flow?
Use an ultrasonic leak detector with a calibrated cfm estimate when possible. If you only have an orifice chart, match the chart pressure to the plant pressure and treat the result as approximate.
Why does the calculator warn when leak flow exceeds rated compressor flow?
A single leak larger than the compressor rating is unusual, so the warning protects against unit mixups, pressure assumptions, or accidentally entering total plant leakage into a single-compressor model.
Does this include demand charges?
Only if you include demand effects in the electricity rate. The simplest approach is to use your plant's blended internal $/kWh rate; a formal utility analysis may separate energy, demand, and delivery charges.
Can this replace a compressor audit?
No. It is a screening tool, not a full compressor-system audit. Use it to rank leaks, then verify major opportunities with compressor data and system controls.
